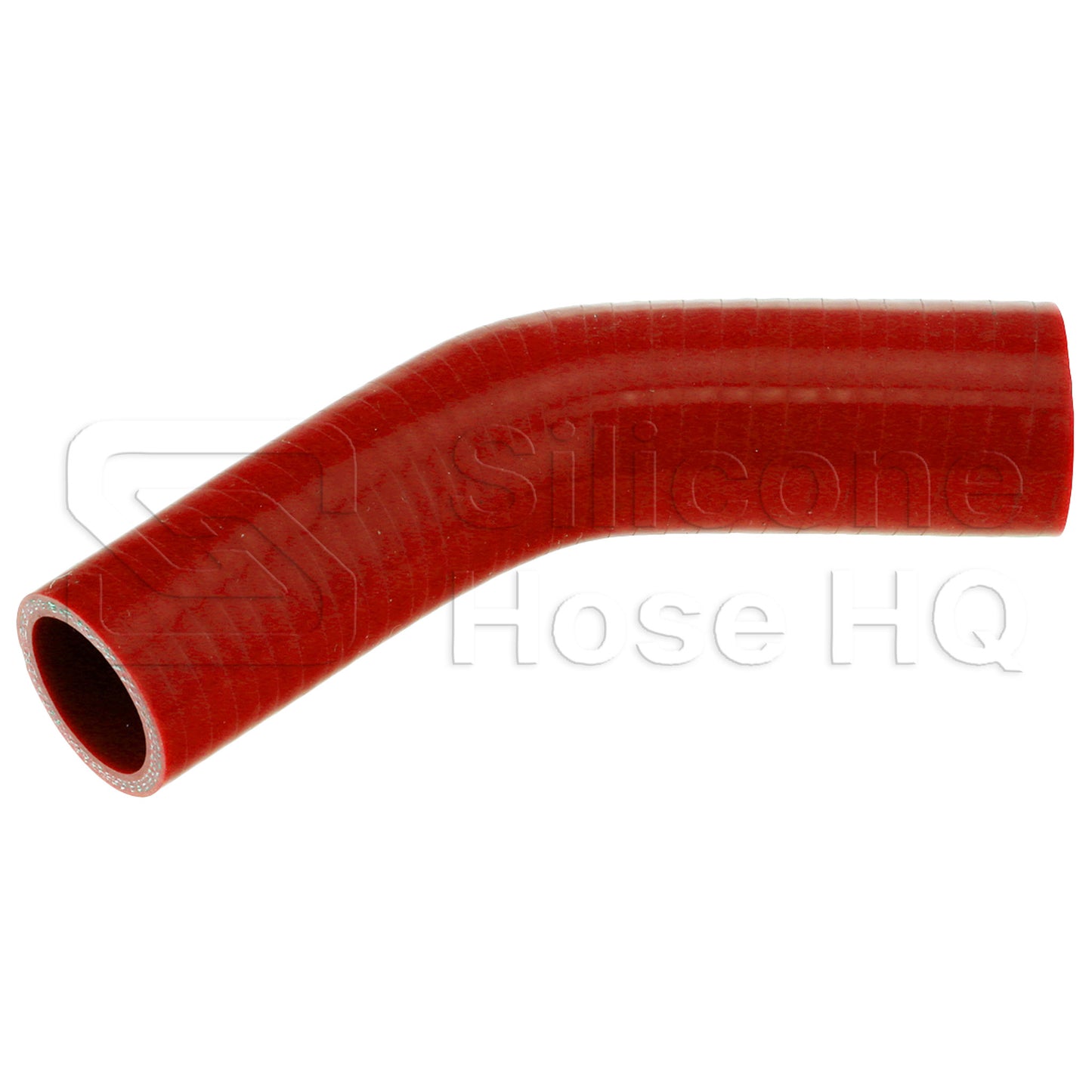

Silicone Hose, 1 3/8 x 1 1/4" 45 deg. Reducing Elbow

Our silicone hose is built for endurance and performance in custom coolant and intake plumbing applications. Each hose is hand-crafted from multiple layers of silicone rubber with polyester reinforcing fabric between the layers. The silicone rubber remains flexible and tough from -50° C to +180° C (-76° F to 356° F). The outside has a smooth, shiny, "wipe down" finish that is easy to keep clean.

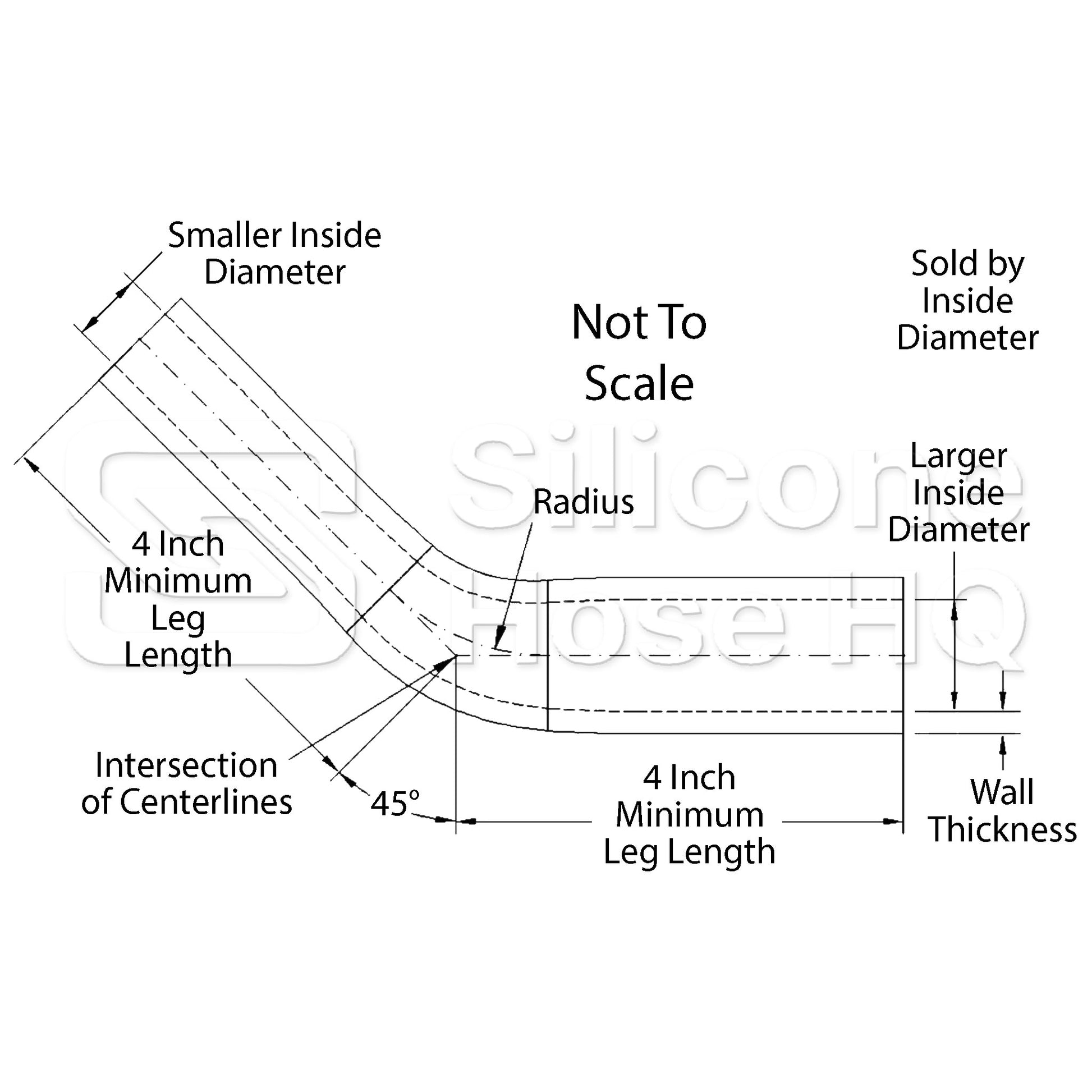

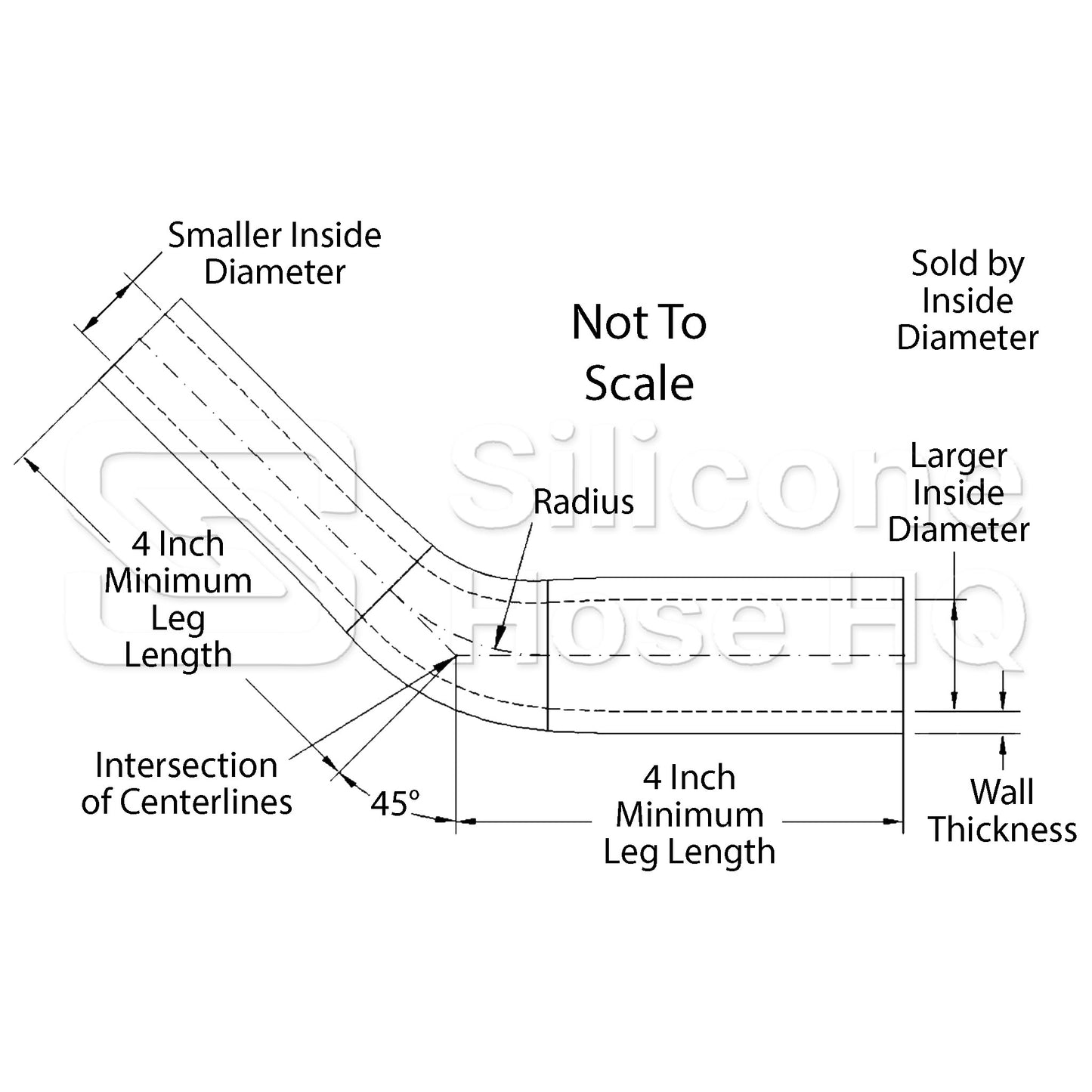

These 45 degree reducer elbow hoses have a 35mm ID at one end and a 32mm ID at the other end to connect a 1 3/8" OD tube to a 1 1/4" OD tube. The legs measure at least 4 inches long (measured from the centerline bend radius). The 3-ply reinforcement results in a 4mm wall thickness (43mm / 1 11/16" and 40mm / 1 5/8" OD) and a working pressure rating over 27 psi (135 psi burst pressure). Use with our Aluminum Splicing Nipples (HJ35 and HJ32) and Lined Hose Clamps (Part No. 3613-2.25) to construct the exact bends and lengths you need.

Note: This hose is NOT formulated for use in oil or fuel plumbing applications. It will survive occasional spills and oil leaks, but it will not stand up to continuous exposure to petroleum.
