Stainless T-Bolt Clamps for Racing Mufflers and other uses
Stainless T-Bolt Clamps for Racing Mufflers and other uses
In stock
30 Day Easy Returns
FREE Shipping on orders over $99
Shop With Confidence
30 Day Easy Returns
No Need to Call

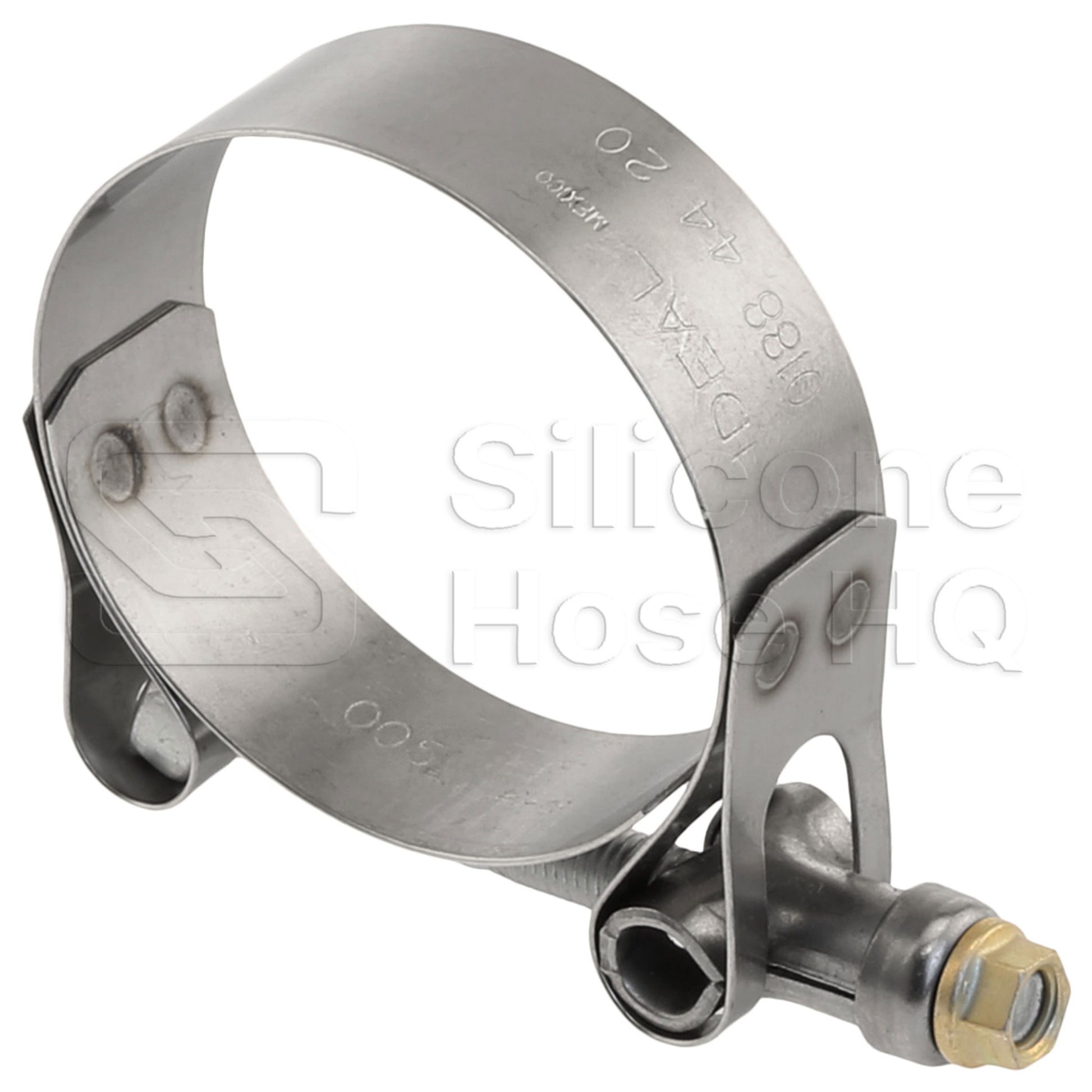

These 3/4" wide stainless steel clamps meet or exceed SAE J1508 specifications. T-Bolt clamps are perfect for use as muffler clamps. Even pressure all around the clamp prevents crimping the pipes, and the low profile reduces underhang below the car.
These clamps are also great for use as hose clamps in high-pressure plumbing applications. The T-bolt design provides more security than common worm-drive clamps.
Each clamp includes an all-metal locking nut. The nominal size refers to the minimum inside diameter of the clamp. Sold individually.
| Recommended Clamp Sizes for Silicone Hose* | |||
|---|---|---|---|
| Hose ID (Inch) | Hose ID (mm) | Clamp ID Range | Nominal Size |
| 1" | 25mm | 1.25" to 1.39" | 1.25 |
| 1 1/8" | 28mm | 1.38" to 1.57" | 1.38 |
| 1 1/4" | 32mm | 1.50" to 1.69" | 1.50 |
| 1 3/8" | 35mm | 1.63" to 1.88" | 1.63 |
| 1 1/2" | 38mm | 1.75" to 2.00" | 1.75 |
| 1 5/8" | 41mm | 1.88" to 2.19" | 1.88 |
| 1 3/4" | 45mm | 2.13" to 2.44" | 2.13 |
| 2" | 51mm | 2.38" to 2.69" | 2.38 |
| 2 1/4" | 57mm | 2.50" to 2.81" | 2.50 |
| 2 1/2" | 63mm | 2.75" to 3.06" | 2.75 |
| 2.88" to 3.19" | 2.88 | ||
| 2 3/4" | 70mm | 3.00" to 3.31" | 3.00 |
| 3.25" to 3.56" | 3.25 | ||
| 3" | 76mm | 3.38" to 3.69" | 3.38 |
| 3 1/4" | 83mm | 3.50" to 3.81" | 3.50 |
| 3 1/2"** | 90mm** | 3.75" to 4.06" | 3.75 |
| 4.00" to 4.31" | 4.00 | ||
| 4" | 102mm | 4.25" to 4.56" | 4.25 |
| 4 1/2"** | 114mm** | 4.75" to 5.06" | 4.75 |
| 5.00" to 5.31" | 5.00 | ||
| 5"** | 127mm** | 5.25" to 5.56" | 5.25 |
| 5.50" to 5.81" | 5.50 | ||
| 5.75" to 6.06" | 5.75 | ||
| 6.00" to 6.31" | 6.00 | ||
*Please Note:
These recommendations are specifically for our thick-wall Silicone Hoses. Thinner-wall hoses may require a smaller clamp. If you are unsure, measure the outside diameter of your hose AFTER it is installed on the tubing.
** These hose sizes are on the borderline between clamp sizes. The correct clamp size will depend on the size of the tubing. You must measure the OD of your hose AFTER it is installed on the tubing. Failure to measure may result in damage to the clamp or blowing the hose off the tube!
These 3/4" wide stainless steel clamps meet or exceed SAE J1508 specifications. T-Bolt clamps are perfect for use as muffler clamps. Even pressure all around the clamp prevents crimping the pipes, and the low profile reduces underhang below the car.
These clamps are also great for use as hose clamps in high-pressure plumbing applications. The T-bolt design provides more security than common worm-drive clamps.
Each clamp includes an all-metal locking nut. The nominal size refers to the minimum inside diameter of the clamp. Sold individually.
| Recommended Clamp Sizes for Silicone Hose* | |||
|---|---|---|---|
| Hose ID (Inch) | Hose ID (mm) | Clamp ID Range | Nominal Size |
| 1" | 25mm | 1.25" to 1.39" | 1.25 |
| 1 1/8" | 28mm | 1.38" to 1.57" | 1.38 |
| 1 1/4" | 32mm | 1.50" to 1.69" | 1.50 |
| 1 3/8" | 35mm | 1.63" to 1.88" | 1.63 |
| 1 1/2" | 38mm | 1.75" to 2.00" | 1.75 |
| 1 5/8" | 41mm | 1.88" to 2.19" | 1.88 |
| 1 3/4" | 45mm | 2.13" to 2.44" | 2.13 |
| 2" | 51mm | 2.38" to 2.69" | 2.38 |
| 2 1/4" | 57mm | 2.50" to 2.81" | 2.50 |
| 2 1/2" | 63mm | 2.75" to 3.06" | 2.75 |
| 2.88" to 3.19" | 2.88 | ||
| 2 3/4" | 70mm | 3.00" to 3.31" | 3.00 |
| 3.25" to 3.56" | 3.25 | ||
| 3" | 76mm | 3.38" to 3.69" | 3.38 |
| 3 1/4" | 83mm | 3.50" to 3.81" | 3.50 |
| 3 1/2"** | 90mm** | 3.75" to 4.06" | 3.75 |
| 4.00" to 4.31" | 4.00 | ||
| 4" | 102mm | 4.25" to 4.56" | 4.25 |
| 4 1/2"** | 114mm** | 4.75" to 5.06" | 4.75 |
| 5.00" to 5.31" | 5.00 | ||
| 5"** | 127mm** | 5.25" to 5.56" | 5.25 |
| 5.50" to 5.81" | 5.50 | ||
| 5.75" to 6.06" | 5.75 | ||
| 6.00" to 6.31" | 6.00 | ||
*Please Note:
These recommendations are specifically for our thick-wall Silicone Hoses. Thinner-wall hoses may require a smaller clamp. If you are unsure, measure the outside diameter of your hose AFTER it is installed on the tubing.
** These hose sizes are on the borderline between clamp sizes. The correct clamp size will depend on the size of the tubing. You must measure the OD of your hose AFTER it is installed on the tubing. Failure to measure may result in damage to the clamp or blowing the hose off the tube!
- NPNorm P.Verified Buyer5 months agoRated 5 out of 5 starsClamp your hose
We use this on our propeller dyno and it holds up to the toughest conditions around.
- MMichelleVerified Buyer1 year agoRated 5 out of 5 starsTotally worth it!!
I have a ton of boost, other clamps allowed the boots to be blown off, these hold tight!
- CZChris Z.Verified Buyer1 year agoRated 5 out of 5 stars10 OUT OF 10!!!!!!!!!!!!!!!!!!
TOP QUALITY PARTS!!!
- EEastonspeedworksVerified Buyer1 year agoRated 5 out of 5 starsGreat little clamps
Use them all the time no issues
- 7F78 F.Verified Buyer2 years agoRated 5 out of 5 starsGOOD QUALITY
FAST DELIVERY - NICE PRODUCT
