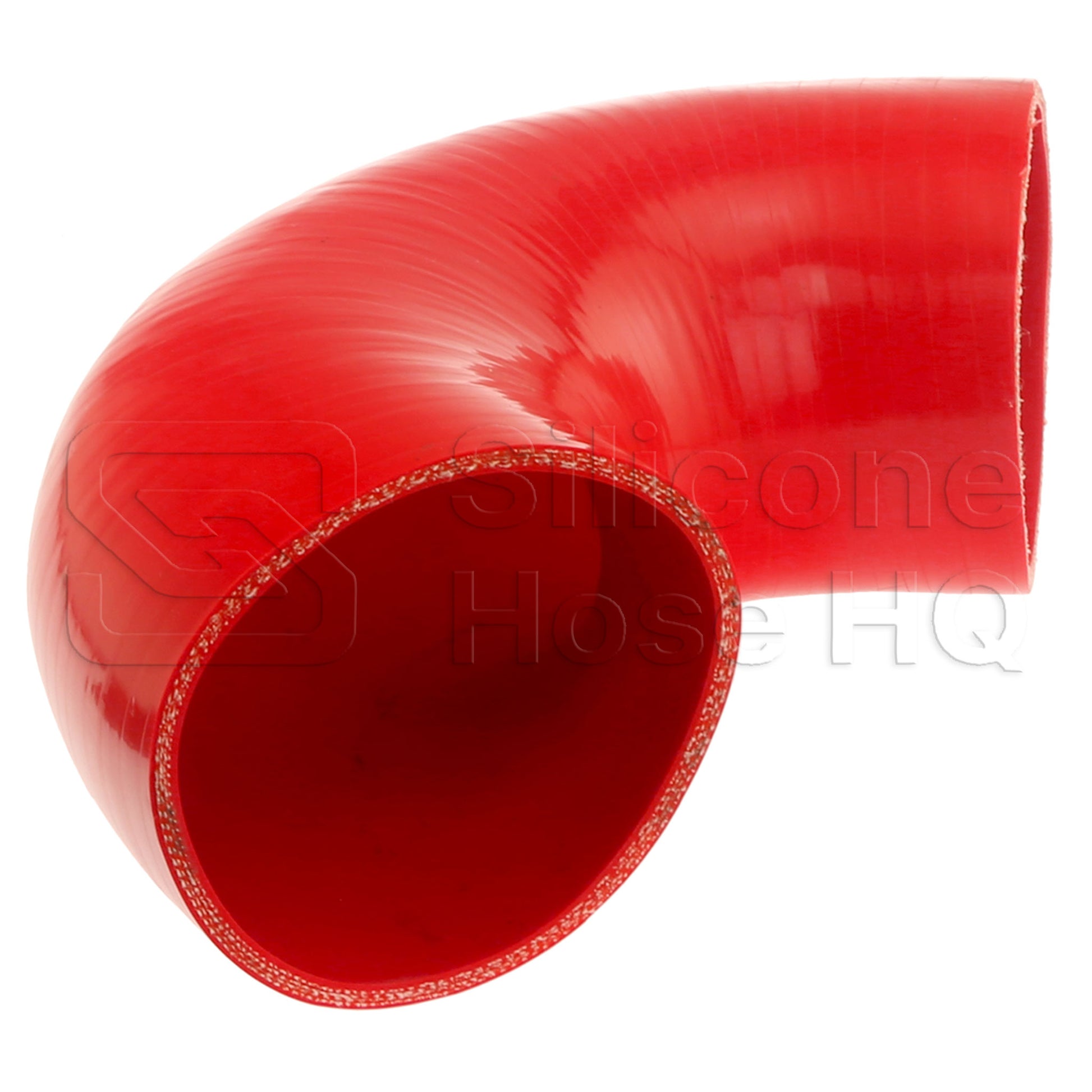

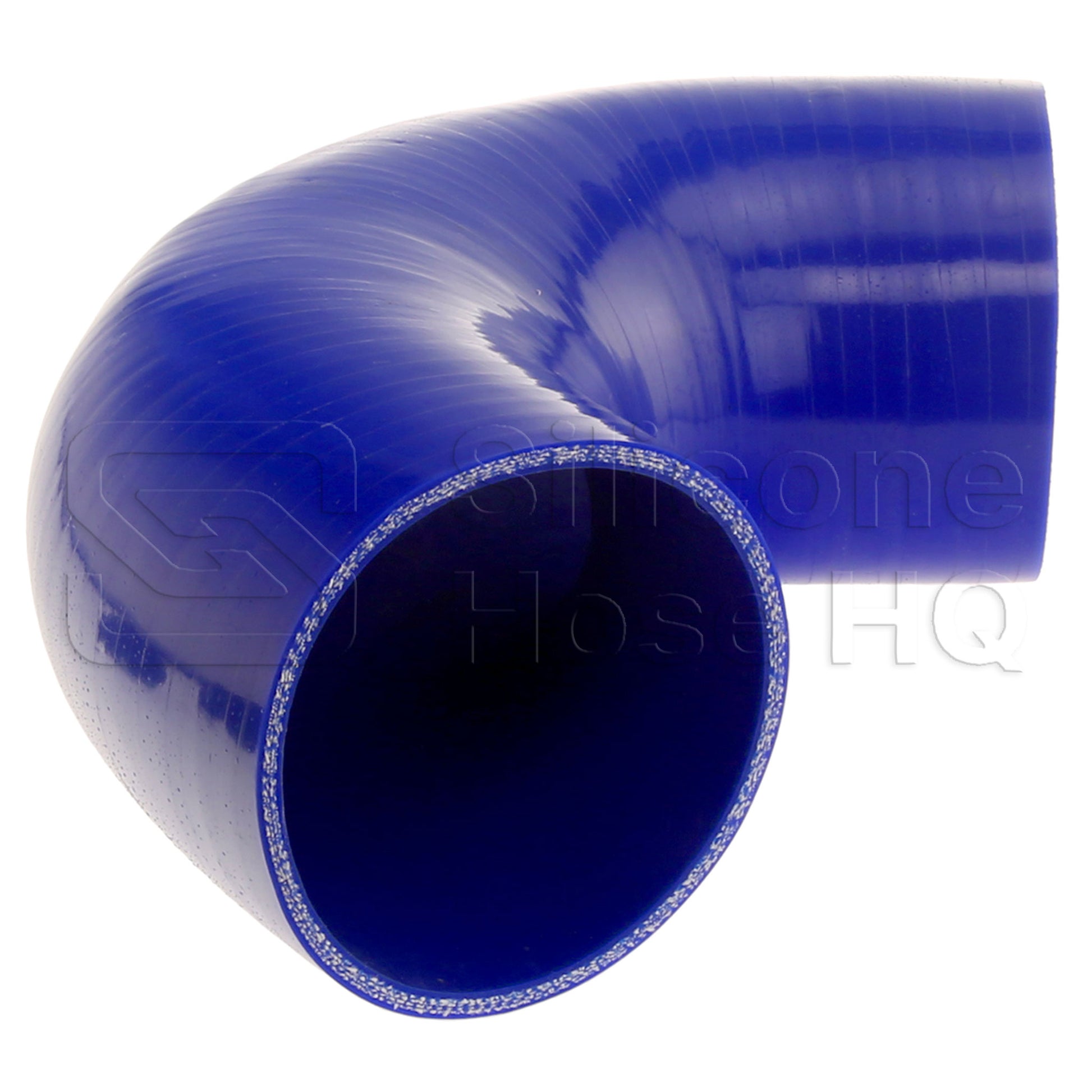

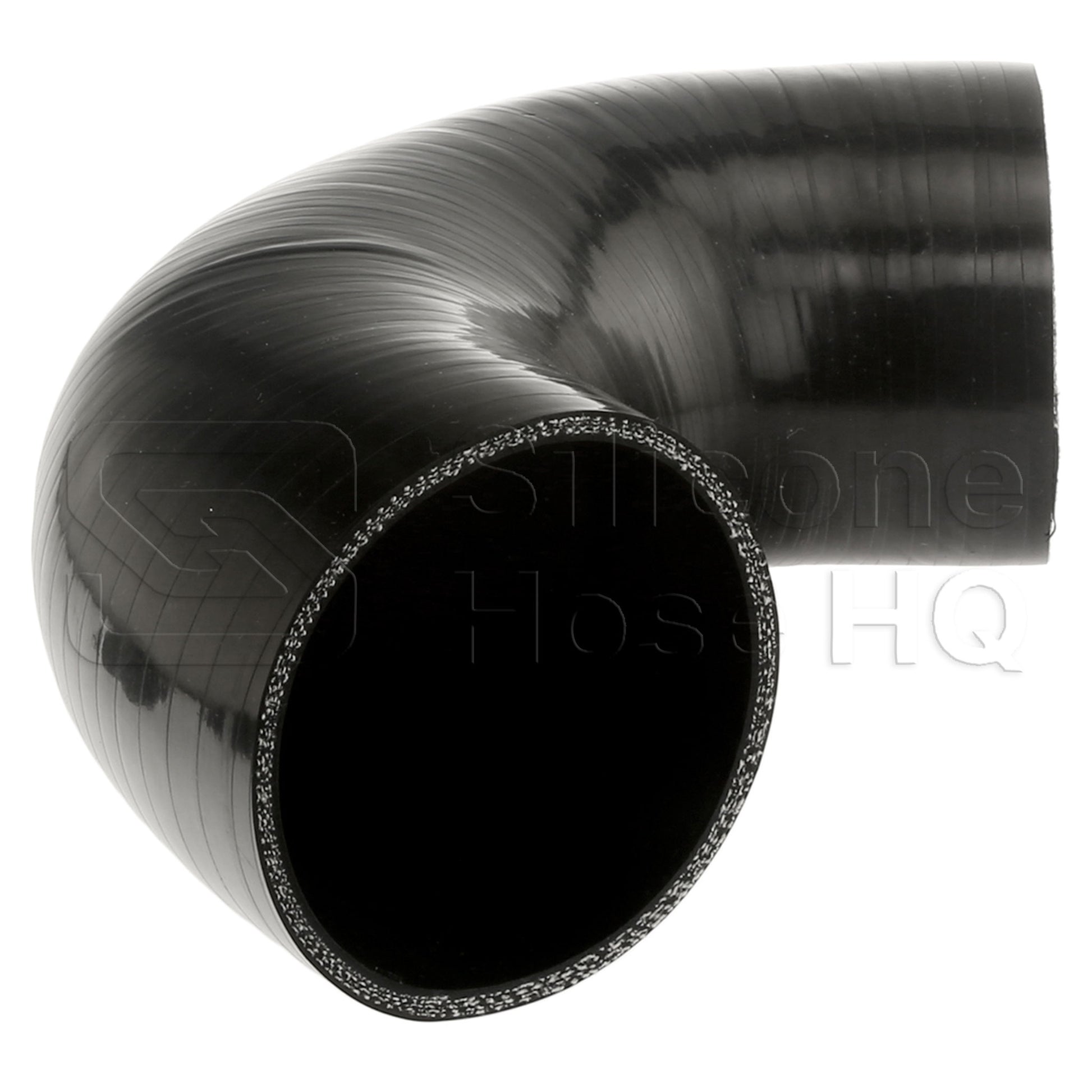

Silicone Hose, 4.00" I.D. 135 degree Elbow, 4" Legs

Our silicone hose is built for endurance and performance in custom coolant and turbo intake plumbing applications. Each hose is hand-crafted from multiple layers of silicone rubber with polyester reinforcing fabric between the layers. The silicone rubber remains flexible and tough from -50° C to +180° C (-76° F to 356° F).

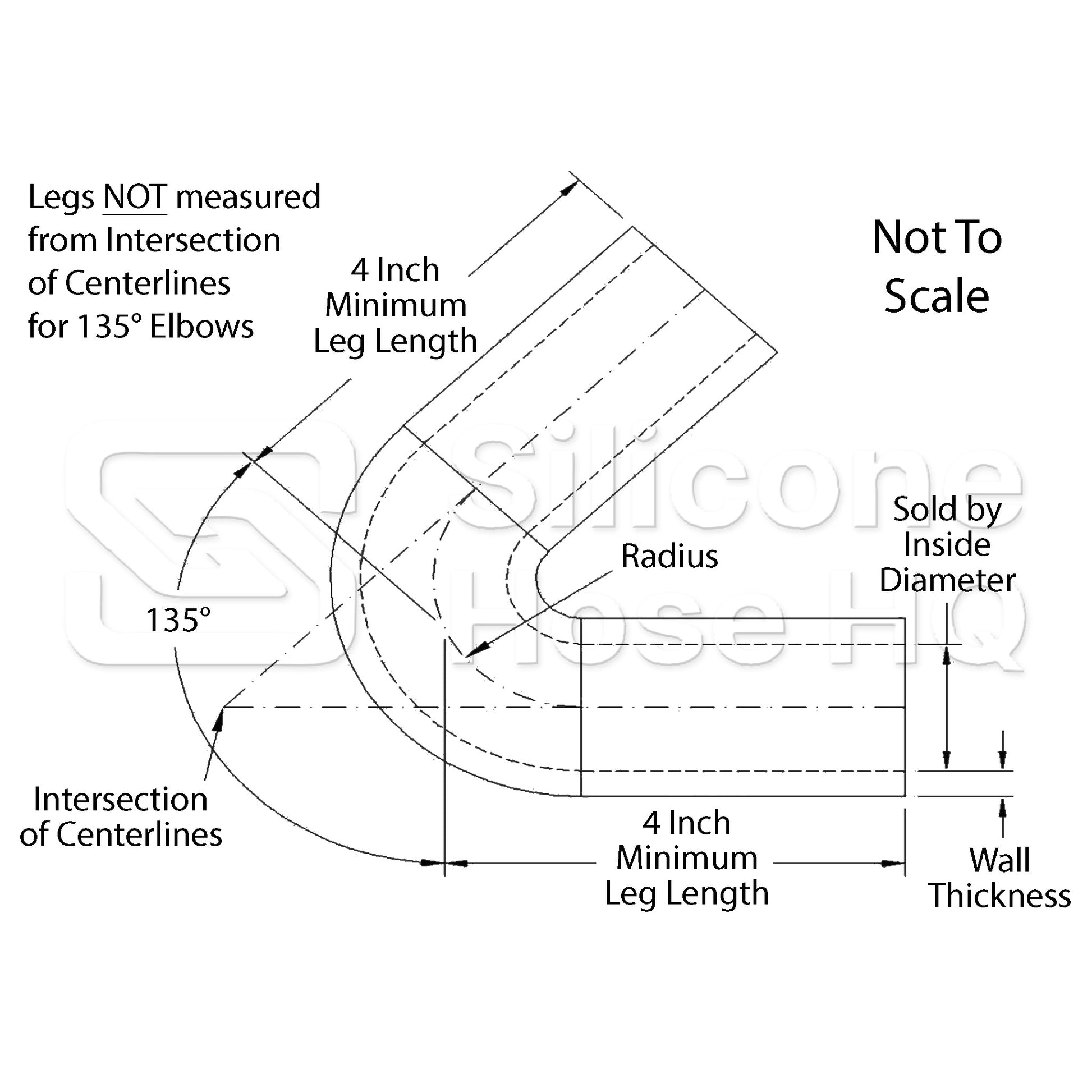

These 135 degree elbows have a 4" ID with a smooth, shiny "wipe-down" finish. The legs measure at least 4 inches long (measured from the centerline bend radius). The 4-ply reinforcement results in a working pressure rating in excess of 14 psi and a 5.5mm wall thickness (113mm / 4 7/16" OD). Use our Lined Hose Clamps (Part No. 3613-5.00) to clamp the hose over a 4" OD tube.

Note: This hose is NOT formulated for use in oil or fuel plumbing applications. It will handle an air-fuel mixture and will survive occasional spills and oil leaks, but it will not stand up to continuous exposure to liquid petroleum.
