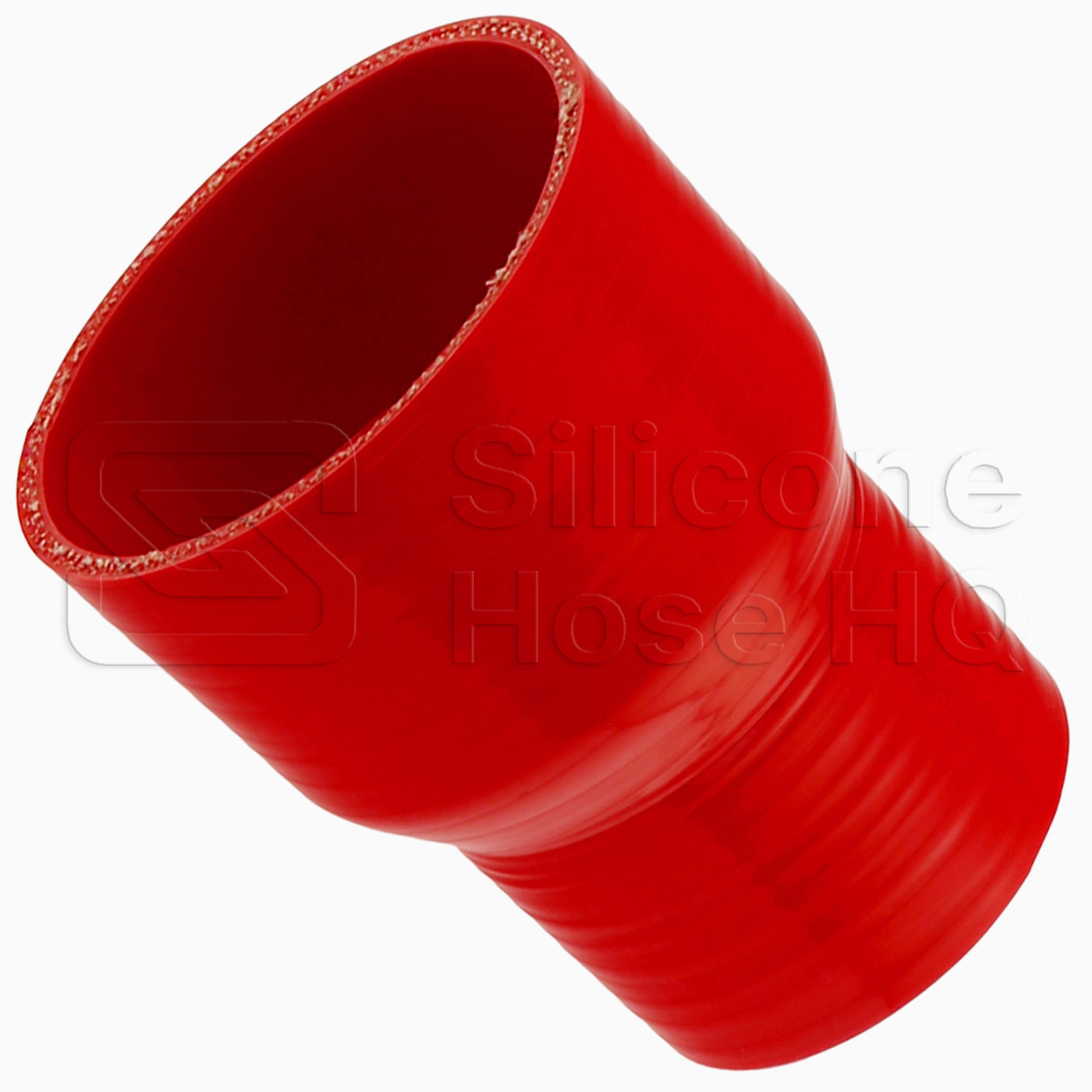

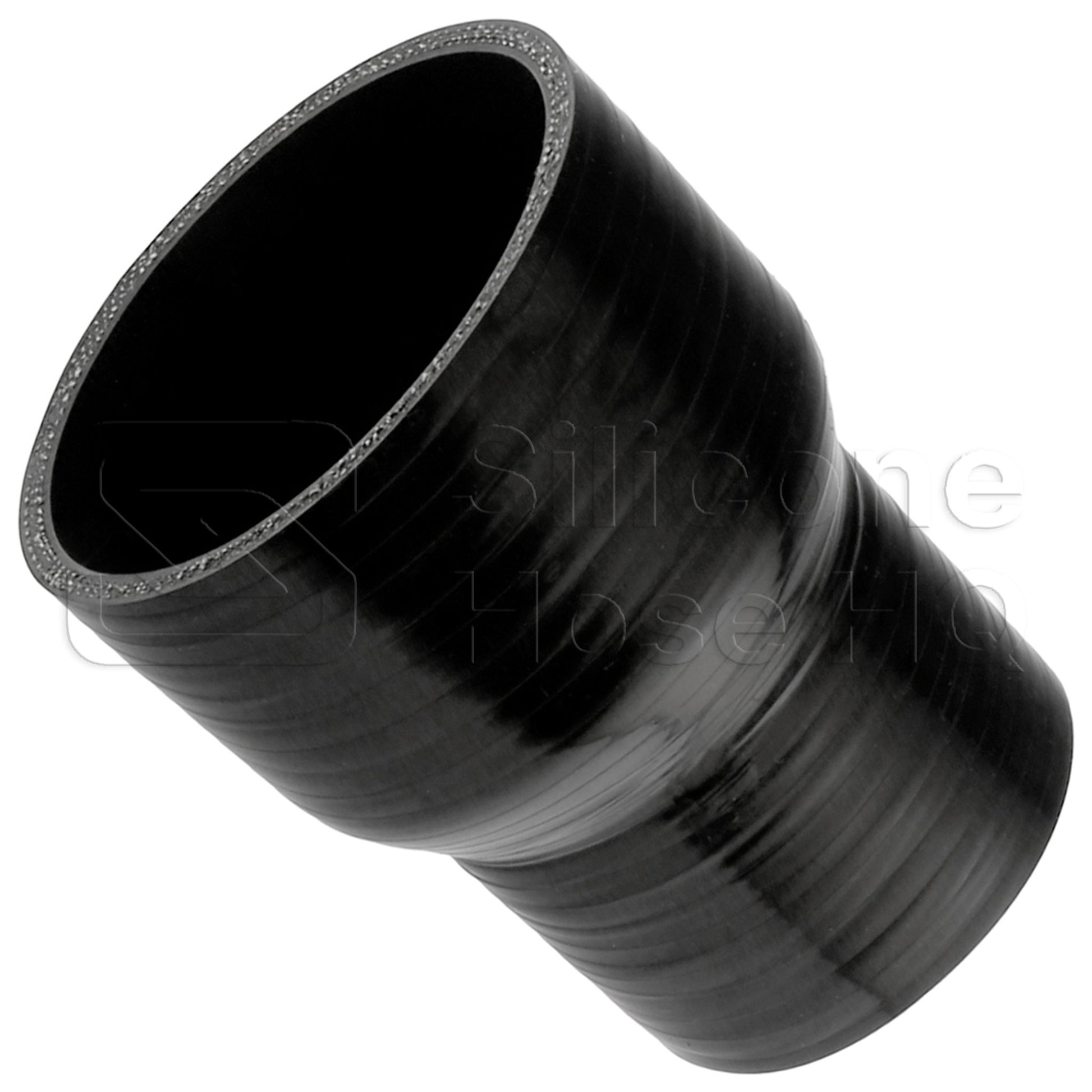

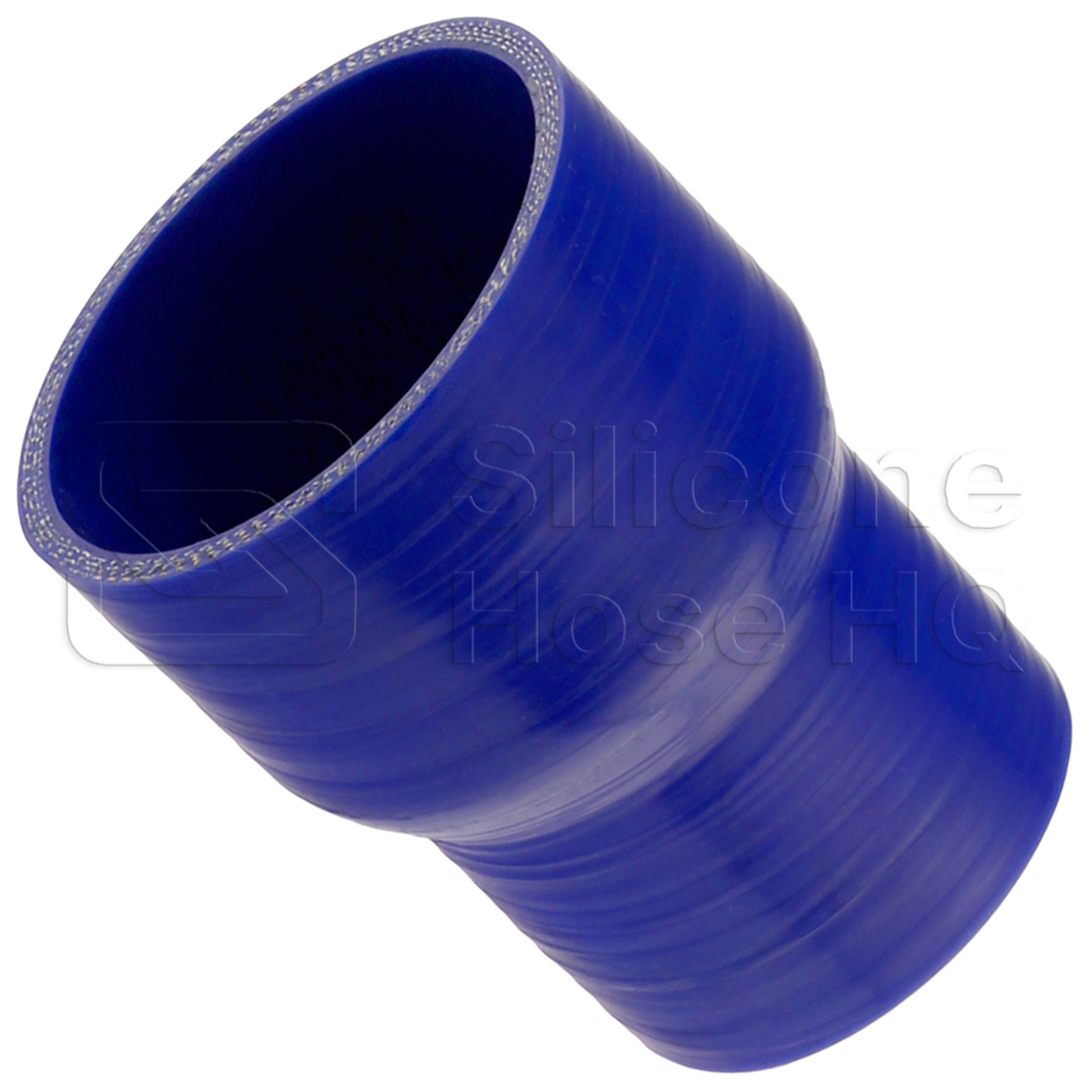

These straight reducer hoses are approximately 5 inches long overall. The 95mm ID at one end and 70mm ID at the other end let you connect a 3 3/4" OD tube to a 2 3/4" OD tube. The 4-ply reinforcement results in a 5.5mm wall thickness (106mm / 4 1/4" and 80mm / 3 1/8" OD) and a working pressure rating over 15 psi (78 psi burst pressure). Use with our Aluminum Splicing Nipples (Part No. HJ95 and HJ70) and Lined Hose Clamps (Part No. 3613-5.00 and 3613-4.00) to construct the exact bends and lengths you need.
Note: This hose is NOT formulated for use in oil or fuel plumbing applications. It will survive occasional spills and oil leaks, but it will not stand up to continuous exposure to petroleum.
