High Temp 1-Ply Silicone Air Duct Hose, 450F, Orange Only
High Temp 1-Ply Silicone Air Duct Hose, 450F, Orange Only
In stock
30 Day Easy Returns
FREE Shipping on orders over $99
Shop With Confidence
30 Day Easy Returns
No Need to Call
Silicone Rubber Air Duct Hose is popular for brake cooling ducts due to its high temperature capability (maximum 450° F continuous / 500° F intermittent).

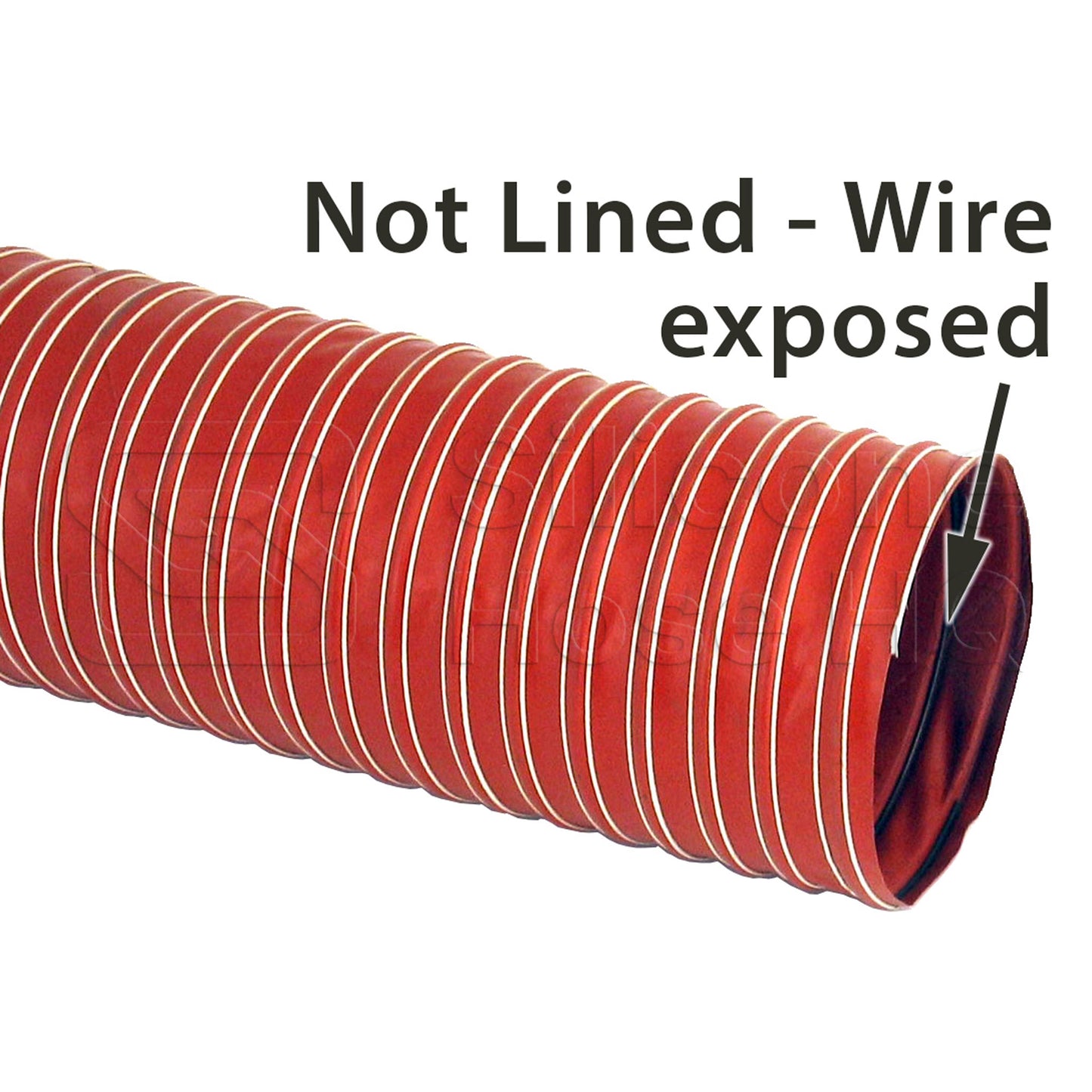

This hose is extremely flexible and pliable, but a bronze coated spring-steel wire support helix prevents it from collapsing. The fiberglass fabric cover and fiberglass cord are both impregnated and coated with silicone rubber. Lengths can be screwed together to form a continuous length if you've got leftovers around. Red-orange color only. This silicone duct hose is not made in any other color.
| Note: These ducts are manufactured in 12 foot nominal lengths but only measure 12 feet when stretched tightly. The actual lengths will generally measure several inches less than nominal when relaxed. |
| Silicone Air Duct Hose | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal ID | 1.5 Inch | 2 Inch | 2.5 Inch | 3 Inch | 3.5 Inch | 4 Inch | 4.5 Inch | 5 Inch | 5.5 Inch |
| Pressure Rating* | 18 psi | 15 psi | 14 psi | 13 psi | 12.5 psi | 12 psi | 11 psi | 10 psi | 9.5 psi |
| Vacuum Rating* | 18 in Hg | 14 in Hg | 12.5 in Hg | 11 in Hg | 10 in Hg | 10 in Hg | 8.5 in Hg | 7.5 in Hg | 6 in Hg |
| Centerline Bend Radius | 1.2" | 1.72" | 2.15" | 2.55" | 3.1" | 3.6" | 4.15" | 4.6" | 5.2" |
* Pressure and vacuum ratings are all for straight lengths of hose at 72° F. Temp range -65° F to +450° F.
The 3 Inch size is most popular for brake ducting on racecars. This size fits most of our NACA ducts and air inlet ducts.
Silicone Rubber Air Duct Hose is popular for brake cooling ducts due to its high temperature capability (maximum 450° F continuous / 500° F intermittent).
This hose is extremely flexible and pliable, but a bronze coated spring-steel wire support helix prevents it from collapsing. The fiberglass fabric cover and fiberglass cord are both impregnated and coated with silicone rubber. Lengths can be screwed together to form a continuous length if you've got leftovers around. Red-orange color only. This silicone duct hose is not made in any other color.
| Note: These ducts are manufactured in 12 foot nominal lengths but only measure 12 feet when stretched tightly. The actual lengths will generally measure several inches less than nominal when relaxed. |
| Silicone Air Duct Hose | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal ID | 1.5 Inch | 2 Inch | 2.5 Inch | 3 Inch | 3.5 Inch | 4 Inch | 4.5 Inch | 5 Inch | 5.5 Inch |
| Pressure Rating* | 18 psi | 15 psi | 14 psi | 13 psi | 12.5 psi | 12 psi | 11 psi | 10 psi | 9.5 psi |
| Vacuum Rating* | 18 in Hg | 14 in Hg | 12.5 in Hg | 11 in Hg | 10 in Hg | 10 in Hg | 8.5 in Hg | 7.5 in Hg | 6 in Hg |
| Centerline Bend Radius | 1.2" | 1.72" | 2.15" | 2.55" | 3.1" | 3.6" | 4.15" | 4.6" | 5.2" |
* Pressure and vacuum ratings are all for straight lengths of hose at 72° F. Temp range -65° F to +450° F.
The 3 Inch size is most popular for brake ducting on racecars. This size fits most of our NACA ducts and air inlet ducts.
